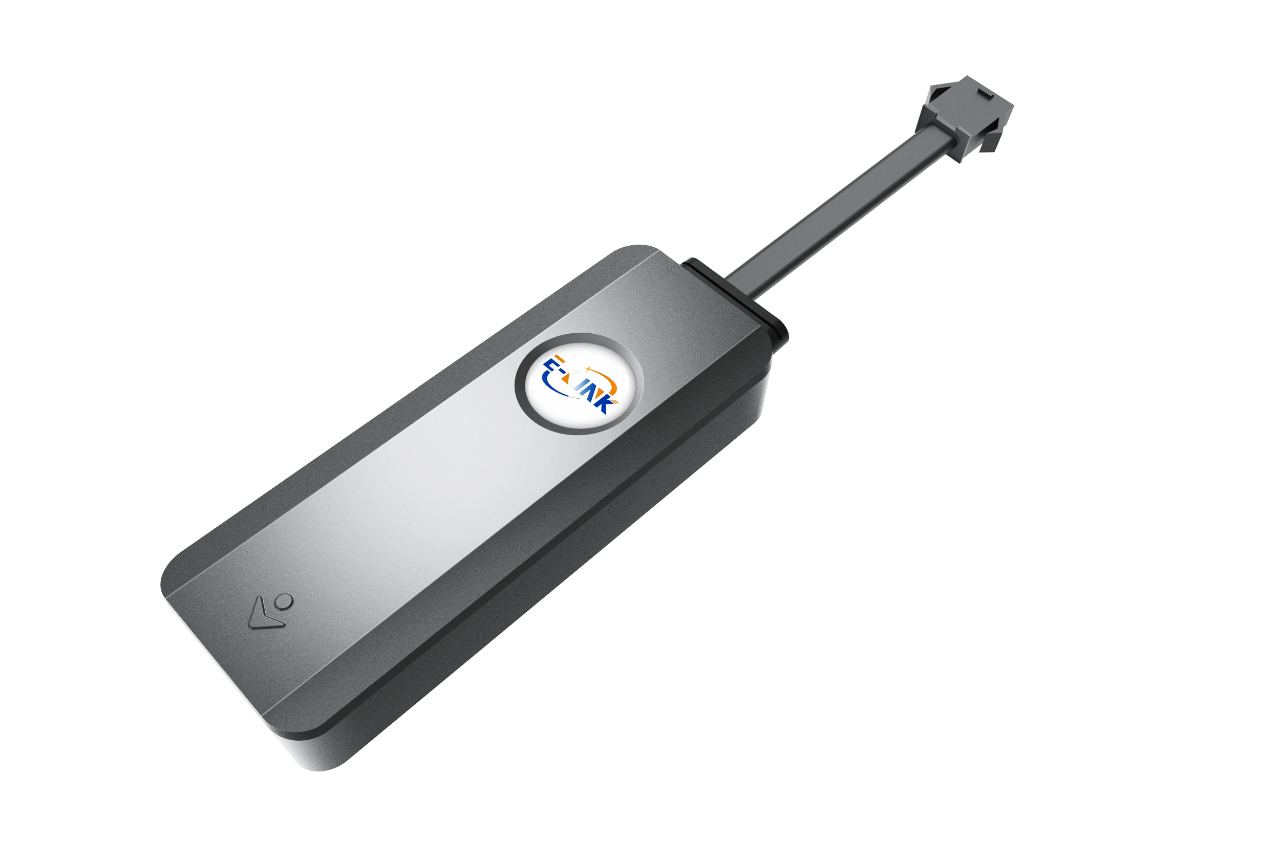

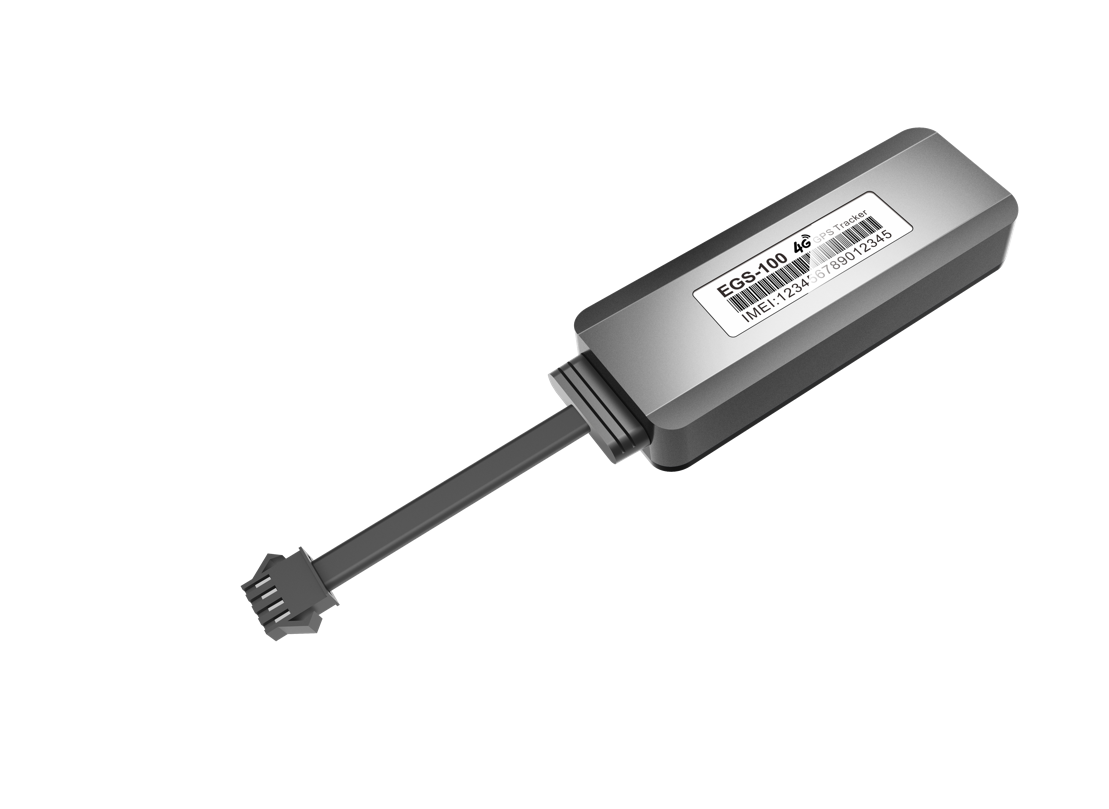

EGS-100

Real-Time Tracking
Trace Playback
Low battery alarm
Remotely Cutoff Petrol/Electricity
ACC Detection
250mAh Backup Battery
GPS + BDS + LBS Tracking
User define Geo-fence
Cut-Wire alarm

Real-Time Tracking

Trace Playback

Low battery alarm

Size82x30.5x14.8mm
Working Temperature-20°C to 75°C
Working VoltageDC 9V-90V
Built-in Battery300mAh
SIM CardMicro SIM Card
Host weight38g
Location Accuracy<5m
Frequency EG915U-LA4G:B2/B3/B4/B5/B7/B8/B28/B66 2G:850/900/1800/1900MHz
Positioning TimeHot Start<2 SEC(Open Sky) Cold Start<38 SEC(Open Sky)
4G AntennaFPC Antenna
GPS AntennaBuilt-in 25mm*25mm*4mm Ceramic Antenna
Channel20 Class
GPS Sensitivity-147dBm
Tracking Sensitivity-160dBm
GPS LED IndicatorBlue
4G LED IndicatorYellow
Power LED IndicatorRed
OTA UpgradeSupport
Parameter SettingSMS Command, Platform Upload Interval Every 10 Seconds
Location UploadUpload Interval Every 10 Seconds
Third-party CheckingWEB/APP
ACC DetectionSupport
Geo-fenceSupport
USB serial portSupport
G-SENSORSupport
Built-in battery switchSupport
Cut-wire AlarmSupport
Vibration AlarmSupport
OTA UpgradeSupport
